Description
For use with virtually any vehicle or electronic equipment;
including Race vehicles and Industrial equipment from up to ½ mile away.
Can also be used a high-reliability remote switch for other electronic components.
Designed and Made in the U.S.A. by Heliosure
Control
- Includes an internal 8-ampere relay that is functional in normally-open and normally-closed configurations.
- Magneto compatible with an electric arc resistance to 800 volts.
- Includes two additional solid-state switches for controlling additional items such as indicator lights or external relays
- Transmitter and Receiver indicate RUN or STOP status of the receiver via high visibility LEDs
- Automatic in-range check every 30 seconds
- Enable and Disable from up to ½ mile away
- Approved for use with MSD Electronics Points Box, MSD Pro Mag 12, MSD Pro Mag 44, Super-Mag, and more
Environment
- Waterproof enclosure & switches on transmitter and receiver
- High vibration and shock tolerance
Radio Technology
- Digital spread spectrum radio control
- High immunity 915Mhz band
- Temperature compensated frequency
- 2-Way communication between the transmitter and receiver. Transmitter confirms that the receiver has received the signal. Includes automatic re-transmission of commands if the signal was not received properly
- Internal antennas on receiver and transmitter eliminates breakage
Electronics
- Redundant memory for long life
- Transmitter is rechargeable with the included USB adapter
- 800 volt isolation on relay wires
- Kits can be customized for specific uses. Please contact us.
Options
- 6-pin Connector – waterproof industrial-grade locking connector and pigtail. For quick removal of receiver. Adds $50

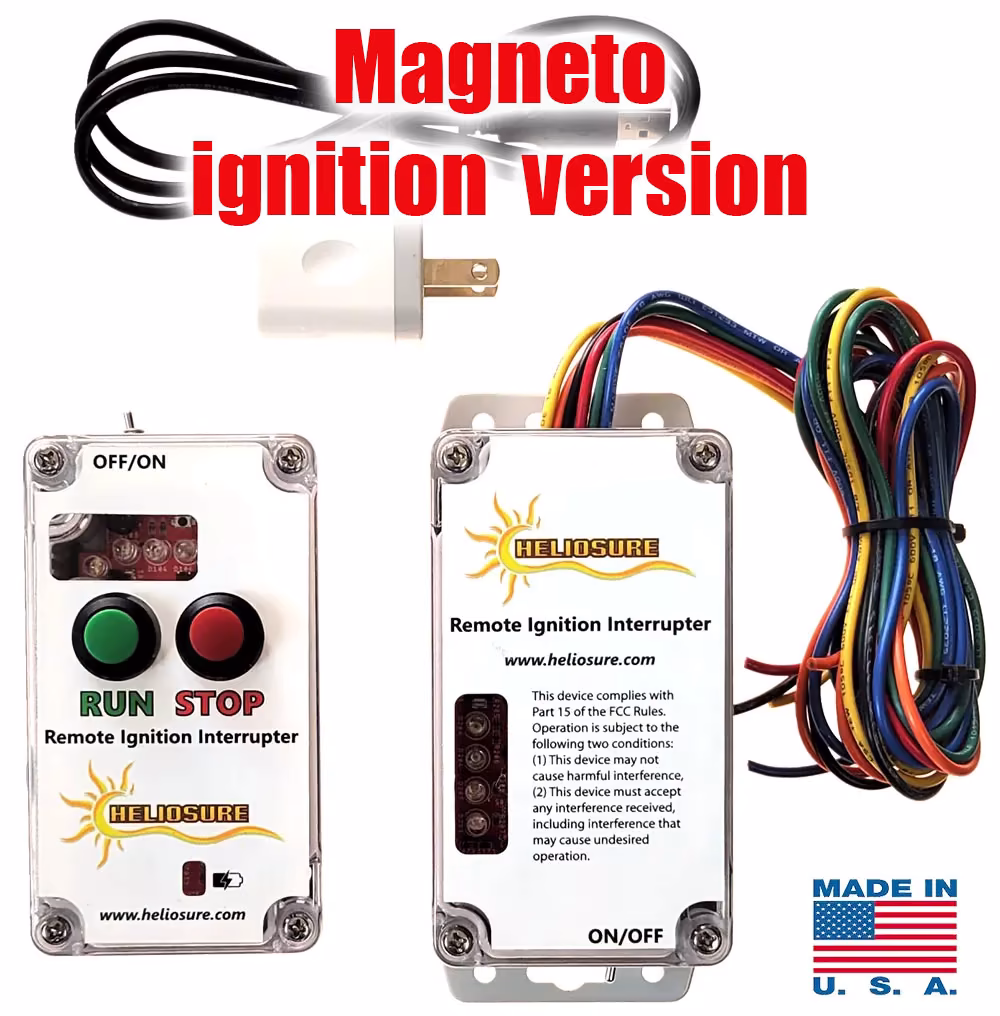

- Magneto compatible – Magneto have very high voltage spikes which may damage electronics. We have a custom circuit board for magneto applications. Adds $75
- Toggle switch On/Off – Quickly turn the transmitter on and off with a toggle switch. Normal method uses the Green button to turn on and Long-press Green button to turn off. Add $25
- 2-Lane Race – These are to be used with Promoter transmitters that can shut off Red and Yellow lane racers. On your receiver you can select No lane, Red lane or Yellow Lane. Your transmitter works in all modes.
Instructions
Range Test
UPC: 645637546844
HTS: 852692500
