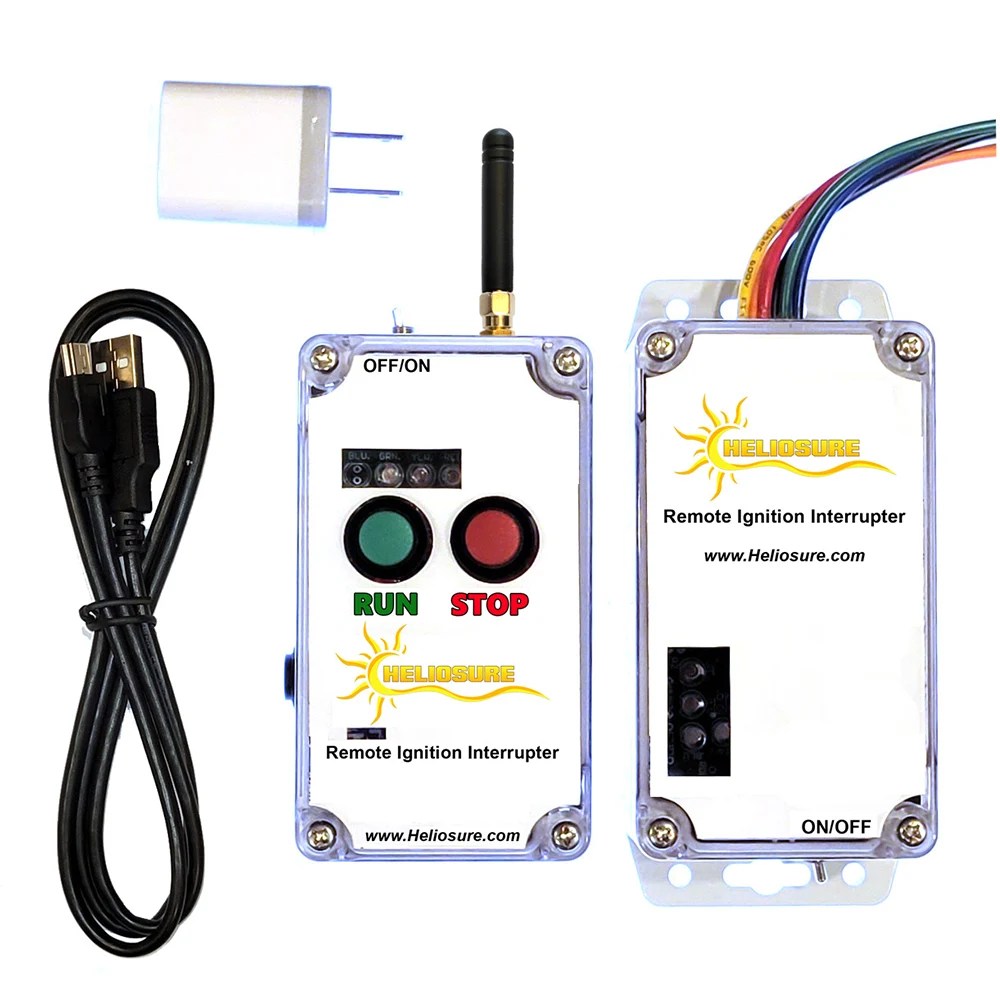

Description
For use with virtually any vehicle or electronic equipment;
including Race vehicles and Industrial equipment from up to 1 mile away
100% Designed and Made in the U.S.A. by Heliosure
Control
- Includes an internal 8-ampere relay that is functional in normally-open and normally-closed configurations.
- Magneto compatible with an electric arc resistance to 800 volts.
- Includes two additional solid-state switches for controlling additional items such as indicator lights or external relays
- Transmitter and Receiver indicate RUN or STOP status of the receiver via high visibility LEDs
- Automatic in-range check every 30 seconds
- Enable and Disable from up to 1 mile away
- Approved for use with MSD Electronics Points Box, MSD Pro Mag 12, MSD Pro Mag 44, Super-Mag, and more
Environment
- Waterproof enclosure & switches on transmitter and receiver
- High vibration and shock tolerance
Radio Technology
- Digital spread spectrum radio control
- High immunity 915Mhz band
- Temperature compensated frequency
- 2-Way communication between the transmitter and receiver. Transmitter confirms that the receiver has received the signal. Includes automatic re-transmission of commands if the signal was not received properly
- Transmitter includes an external 2-inch antenna. Receiver antenna is internal
Electronics
- Redundant memory for long life
- Transmitter is rechargeable with the included USB adapter
- 800 volt isolation on relay wires
- Kits can be customized for specific uses. Please contact us.
Instructions
Range Test
Phillip Jenkins –
How are these installed? Does a mechanic need to do so?
Heliosure –
Installation should be done by someone skilled in vehicle electrical systems. If they can install a toggle switch to shut off the engine, then they are likely skilled enough to install our device.
